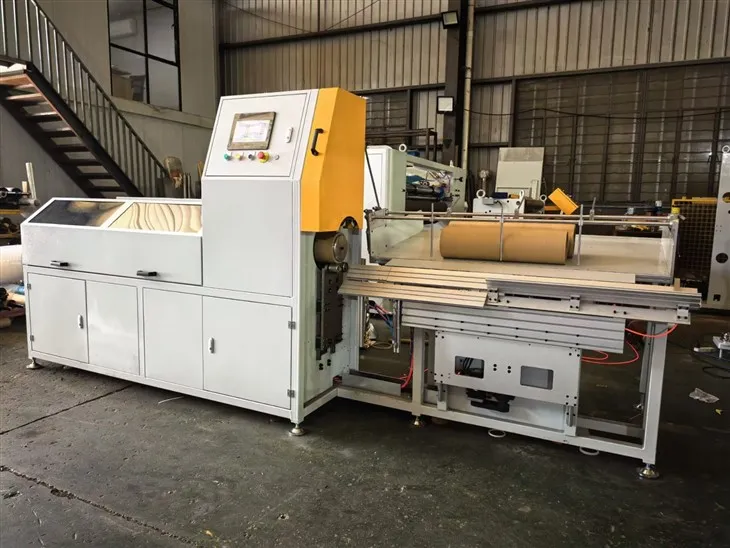

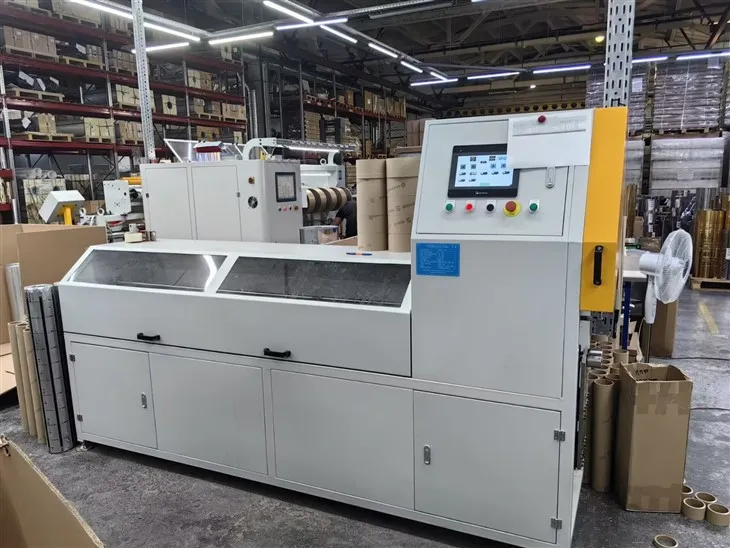

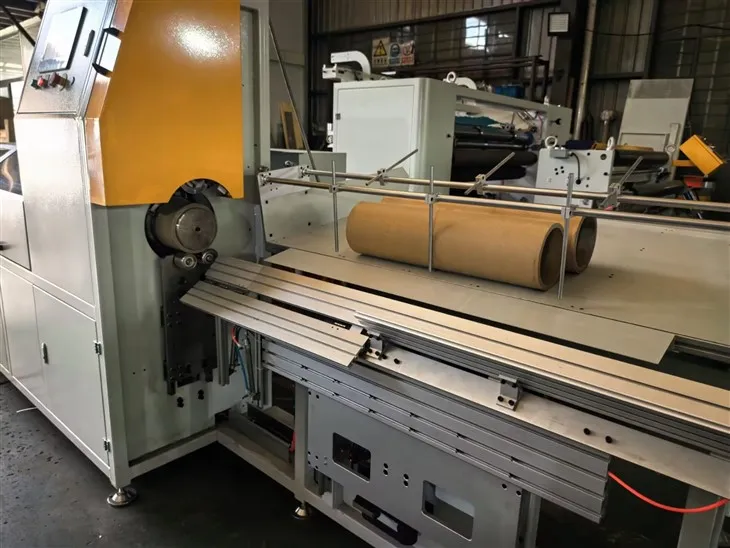

Cardboard & Plastic Core Cutting Machine
PC2500FA is fully automatic cardboard and plastic core cutting machine.
It is a cost-effective machine requiring minimal operator intervention. With a touch screen interface, operators can program various core lengths for each cut sequence to optimize parent core usage.
Available for core ID: 1 inch, 1.5 inch, 3 inch and 6 inch
Wall thickness of core: 2mm-20mm
basic specification:
| 1. MODEL NAME |
PC2500FA |
| 2. MASTER CORE WIDTH |
Within 2500MM |
| 3. WALL THICKNESS | 3MM - 20MM |
| 4. CORE DIAMETER | 1INCH; 3 INCH;1.5INCH; 6 INCH |
| 5. CUT WIDTH | 10MM-1300MM |
| 6. CUT BLADE: | CIRCULAR BLADE |
| 7. POWER | 380V±10%,3PHASE,60Hz |
| 8. AIR | 0.6Mpa |
Products Feature:
1. Simple and intuitive operation
The FA2500 core cutting machine is designed to be a cost effective unit requiring the minimum of operator intervention. The large touch screen interface allows the operator to program their required core lengths.
2. Extremely precise cut length control
The core is indexed forward to the new cut position using a high precision ball screw with servo control of the indexing. This allows movement to micron accuracy. Unlike belt driven systems, the accuracy does not diminish with time.
3.Core loading support
The core cutting machine has an adjustable core loading support to assist with loading the parent core into the machine.
4. Automatic core support height setting
The rollers of the core cutting machine that support the core during the cutting process are automatically positioned at the correct height to suit the core being processed. There are no adjustments for the operator.
Products video:
Standard Accessories:
|
1 PLC |
DELTA |
China |
1PC |
|
2 MAIN MOTOR |
JSCC |
China |
1PC |
|
3 MAIN MOTOR CONVERTER |
DELTA |
China |
1PC |
|
4 TOUCH SCREEN |
DELTA |
China |
1PC |
|
5 SERVO MOTOR |
DELTA |
China |
3PCs |
|
6 SERVO MOTOR DRIVER |
DELTA |
China |
3PCs |
|
7 AIR COMPONENT |
AIRTAC |
China |
|
|
8 LINEAR GUIDE |
HIWIN |
China |
|
|
9 CIRCULAR BLADE |
China |
2 PCs |
Products Guarantee:
ONE YEAR GUARANTEE FOR MACHINE KEY PARTS, LIKE PLC, MOTOR, CONVERTER, DRIVER, TOUCH SCREEN, etc ELECTRICAL PARTS. WE WILL SHIP FREELY THE NEW ONES FOR REPLACEMENT IF ANY OF THEM BROKEN DURING GUARANTEE TIME.
OUR ENGINEER IS AVAILABLE FOR OVERSEAS SERVICE IF CUSTOMER PAY AIR TICKETS,HOTEL AND 120USD/DAY/PERSON
SUBSIDY.
Shipment and package:
Details:
Large touching screen:
Why Choose Us:
Our Promise:
We are committed to outstanding customer service and superior product quality. We promise to continually meet or exceed your expectations in all aspects of the cutting tool industry.
Our Team:
The Core Cutter Family consists of exceptionally skilled engineers, machine operators, quality inspectors, technical support and customer service professionals. We are dedicated to providing you with 100% customer satisfaction from start to finish.
Our Focus
In order to continually meet our customers' needs, we remain focused on continual improvement in all aspects of carbide tool manufacturing. We are fueled by a passion for innovation, motivating us to design better tools, better processes and creative solutions to our customers' machining needs.
