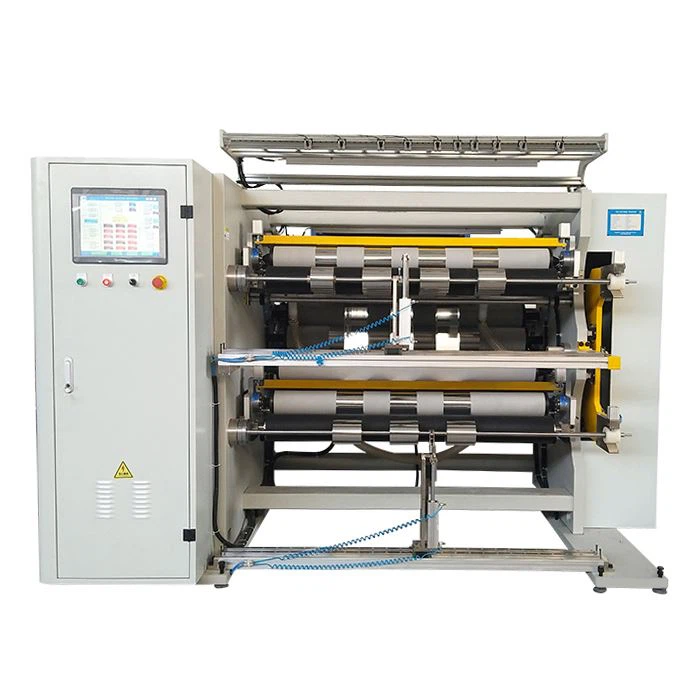

HS1300 hot stamping foil slitter rewinder is an multi-purpose hot foil slitter for foil producers and converters.
It can slit hot and cold foil rolls to 1", 3" and also 6" cores. Besides, it also can do spooling work, rewind full width soft tension foil roll on 1" core, rewind regular tight tension on 3" core, 6" core.
The production speed of this hot stamping foil slitter rewinder is up maximum 700m/min (2300ft/min) for 3", 6" core foil production, 350m/min(1100ft/min) speed for 1" core foil production. It is super high productivity and capacity.
It's an ideal machine to increase your foil slitting capacity.
Technical Data
Model | HS1300 |
Foil Width | 400-1300mm |
Unwind Diameter | 800mm |
Rewind Diameter | 600mm (3 inch core); 250mm(1 inch core) |
Knife | Circular Knife + Razor Blade |
Rewind Width | Min.25mm |
Rewind Shaft | 1 Inch Air Shafts, 3 Inch Differential Shafts, Optional 6 Inch Shaft |
Max.Slitting Speed | 700m/min (3" & 6" cores); 350m/min (1" core) |
Standard Function
- 3" & 6" shaftless unwind
- Splice joint table
- Edge guider
- Manual laser core positioning
- Finished roll unloading tree
- Fully closed loop tension control
- Contact roller system with automatic pressure control
Optional
- Servo motorized automatic laser core positioning
- Automatic labeling and sealing for finished rolls
- Servo Motorized trim winders
- Automatic labeling and seal for finished rolls
- Pneumatic knives
