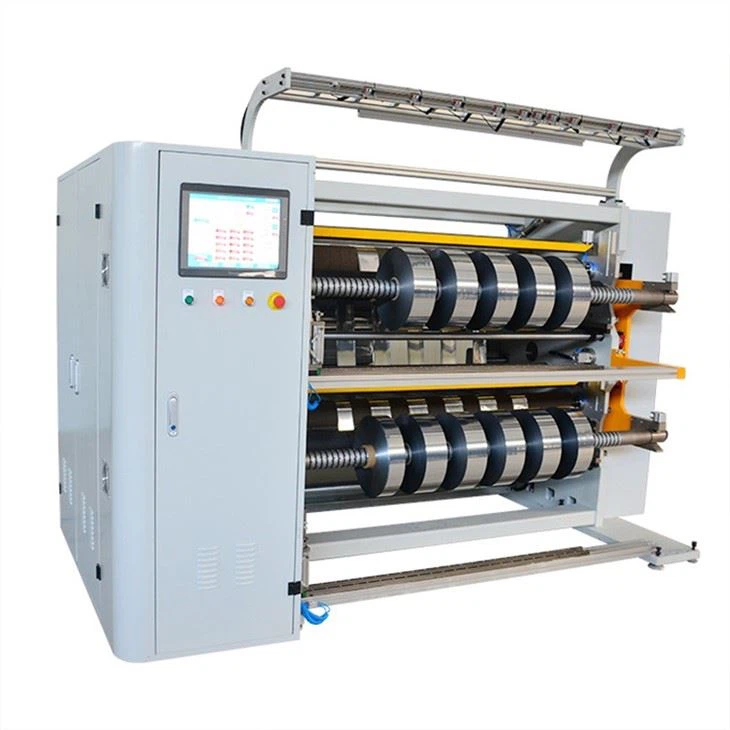

Aluminum Foil Slitting Machine For Pharmaceutical Packaging
HS1600S is one of the most popular Hansoar foil slitter rewinder, welcomed by many foil converters worldwide to slit rewind various types of foils. It is widely used in pharmaceutical packaging industry.
HS1600 adopts servo control, high precision slitting for pharmaceutical blister aluminum foil, Stable operation, low noise, suitable for pharmaceutical packaging aluminum mold mass production.
Basic Specification
HS1600S Aluminum Foil Slitting Machine For Pharmaceutical Packaging
|
Model |
HS1600S |
|
Material Width |
600mm-1600mm |
|
Cutting Material |
Self Adhesive Label, Paper |
|
Unwind Diameter |
1200mm |
|
Unwind Type |
Shaftless unwinding, 3 Inch and 6 Inch core |
|
Slitting Unit |
Circular knife + Razor Blade |
|
Minimum Rewind Width |
50mm |
|
Maximum Rewind Diameter |
800mm |
|
Rewind Shaft |
3 Inch Differential Shafts; 6 Inch Air Shafts |
|
Maximum Slitting Speed |
500M/Min |
|
Power |
380V, 3PH, 50Hz |
|
Air |
0.7Mp |
Products Video
Products Features
Features of Aluminum Foil Slitting Machine For Pharmaceutical Packaging:
1. Separate Unwinder
1). Air brake, cooperated with load cell close looptension system
2). 3" and 6" core shaftless,takes maximum 1.5 Tons weight
3). Hydraulic lifting unit picks up max. 1.5 Tons jumbo roll from floor
4). Motorized jumbo roll position lateral adjustment for easier jumbo roll loading
5). EPC ultrasonic edge guider to track material edge, guarantee material goes into machine straight and rewind flat edge rolls
6). Material joint table help joint new jumbo roll with straight line
7). Unwinder touch screen for easy work at unwinder side
2. Driving
AC motor drive
3. Cutting
Automatic positioning circular knife cutting + razor blade cutting
4. Rewinding

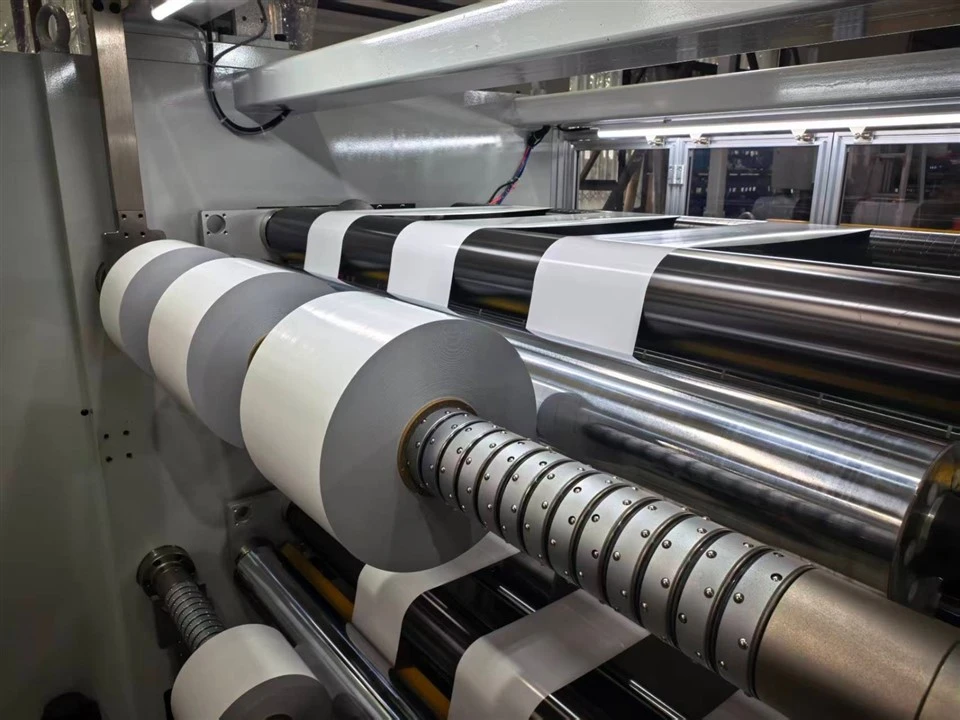

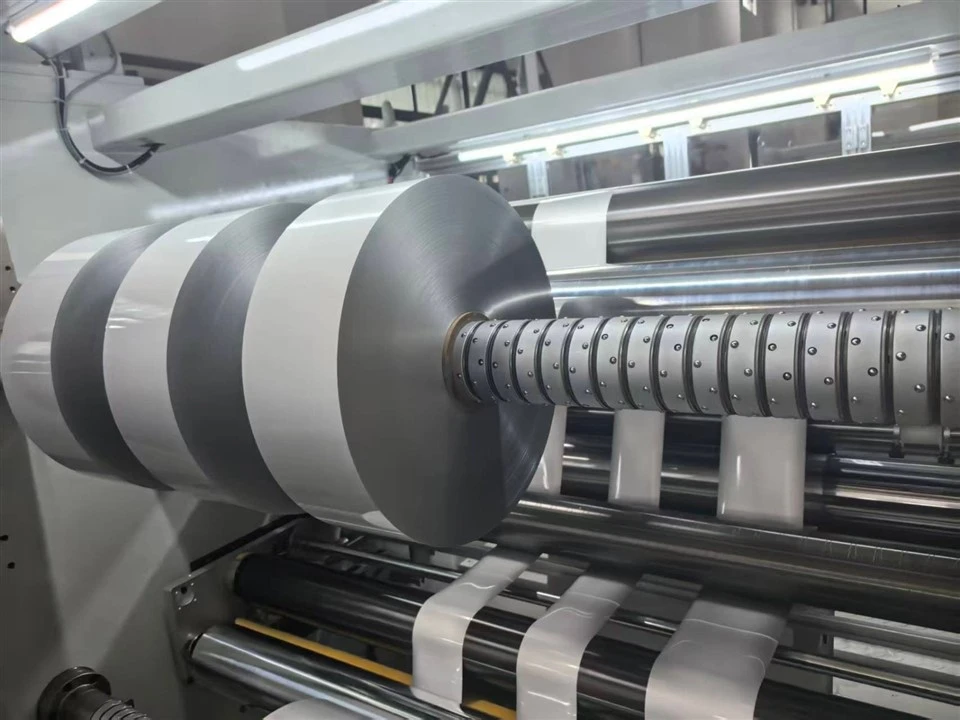

1). Two pieces 3" differential shafts; two pieces 6" air shafts.
2). Two motors control rewinding work, achieve independent control of each shaft.
3). Whole closed loop rewind tension control system with tension sensors, precise and consistent tension system.
4). Modern back-ward contact rollers, help produce perfect rolls without wrinkles.
5). Servo motorized Laser core position unit help set new paper cores precisely and quickly, start next run faster
5. Motorized Pusher System + Pneumatic Unloading Tree
Motorized automatic pushers system will automatically push the heavy rolls out to the pneumatic unloading tree, the pneumatic unloading tree can turn from vertical position to horizontal position, making the unload work easier.
Accessory Details
|
1. PLC |
Mitsubishi |
1set |
|
2. Drive Motor |
ABB |
1set |
|
3. Drive Motor Converter |
YASKAWA |
1set |
|
4. Rewind Motor |
ABB |
2sets |
|
5. Rewind Motor Converter |
YASKAWA |
2sets |
|
6. Unwind Air Brake |
RE |
1set |
|
7. Edge Guider |
Pausource |
1set |
|
8. Unwinder and Rewinder Tneison Load Cell |
Kortis |
3sets |
|
9. Meter Counter |
Autonics |
1set |
|
10. Diameter Sensor |
P+F |
1set |
|
11. Main Touch Screen |
15 Inch Weinview |
1set |
|
12. Unwinder Touch Screen |
7 Inch Weinview |
1set |
|
13. Air Component |
Airtac |
/ |
|
14. High Precision Bearing |
NSK |
/ |
|
15. Automatic Circular Knife + Razor Blade |
/ |
each 20 sets |
|
16. Servo Motorized Laser Core Position unit |
/ |
1 set |
Products Guarantee
One year guarantee for machine key parts, like plc, motor, converter, driver, touch screen, etc electrical parts. We will ship freely the new ones for replacement if any of them broken during guarantee time.
Our engineer is available for overseas service if customer pay air tickets,hotel and 120usd/day/person subsidy.
