PET Film Slitter Rewinder

PET Film Slitter Rewinder

HS1300/1600 film slitter rewinder is a top cost effective choice for plastic film slitting.
It is designed with very compact meanwhile robust construction.

Product Detail

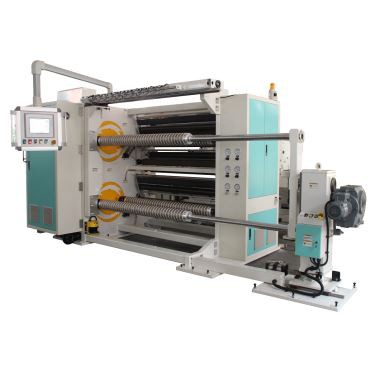

HS1300/1600 film slitter rewinder is a top cost effective choice for plastic film slitting.

It is designed with very compact meanwhile robust construction. With working speed up to max.700m/min, it is no loose to any same level European machines in terms of slitting performance, capacity and price.

This duplex PET film slitter rewinder incorporates all closed loop tension control system for unwinding and rewinding, ensuring consistent and precise tension profiles.

Apart from this, this slitter rewinder uses most advanced contact roller system with automatic pressure control to eliminate wrinkles during production, the finished rolls produced are perfect in shape and tension .

Hansoar's slitter rewinder is your reliable partner, by trusting from customers from all over the world, like Germany, Italy, Holland, Spain, Portugal, Poland, Serbia, Slovenia, USA, Canada, Chile, Brazil, Argentina, Mexico, India, Indonesia, Thailand, South Africa, etc..


Technical Data:

Model

HS1300; HS1600

Film Width

1300; 1600mm

Unwind Jumbo Diameter

800mm Optional: 1000mm

Output Diameter

600mm Optional: 800mm

Slitting Knife

Circular Knife + Razor Blade

Cut Width

Min.25mm

Rewind Shaft

3 Inch Differential Shafts, Optional 6 Inch Shaft

Slitting Speed

500-700m/min


Standard Feature:

- Shaftless unwind

- Splicing joint table

- Digital web guiding system

- Laser core positioning

- Finished roll unloading tree


Optional Functions:

- Servo motorized trim winders

- Automatic jumbo roll lateral adjustment

- Automatic finished roll pusher

- Servo motorized automatic laser core positioning
