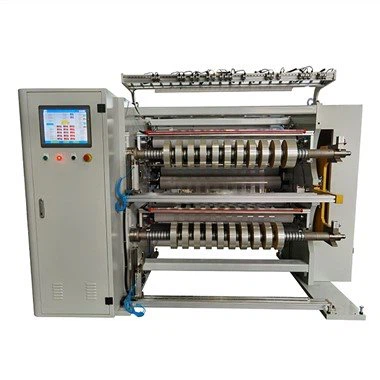

HS2000 Turret Slitting Machine

Application:

Our this HS2000 Turret slitting machine is professionally designed to slit and rewind different films, laminates, etc in four rewinding shafts, easily change over and shorter downtime.

Parameter:

①Unwind

Air brake, cooperated with load cell close looptension system

3" and 6" core shaftless unwind, with pneumatic chucks

Hydraulic lifting unit picks up jumbo roll from floor

LPC edge guider to track material edge or printed line, guarantee material goes into machine straight and rewind flat edge rolls

Material joint table help joint new jumbo roll with straight line

Unwinder touch screen for easy work at unwinder side

②Driving

Servo motor S drive

③Cutting

Razor blade + Maxcess pneumatic knife

④ Turret Rewinding

Four pieces 3 inch differential shafts

Turret rewinding stations, which can automatically cross cut off, automatic turret, automatic stick to start running again

Four motors control rewinding work, each motor controls each rewinding shaft

Closed loop rewind tension control system with tension sensors for both upper and lower rewind station, precise and consistent tension system

Modern back-ward contact rollers system, help produce perfect rolls without wrinkles

Anti- static bars to help eliminate static

Servo Motorized Automatic Laser core position unit help set paper cores

⑤ Automatic Finished Roll Pusher + Pneumatic Unloading Tree

Automatic pusher will push the cut rolls onto the pneumatic unload tree, the pneumatic unloading tree can turn from vertical position to horizontal position for easy unload

⑥Trim

Trim sucking system for clean work environment
