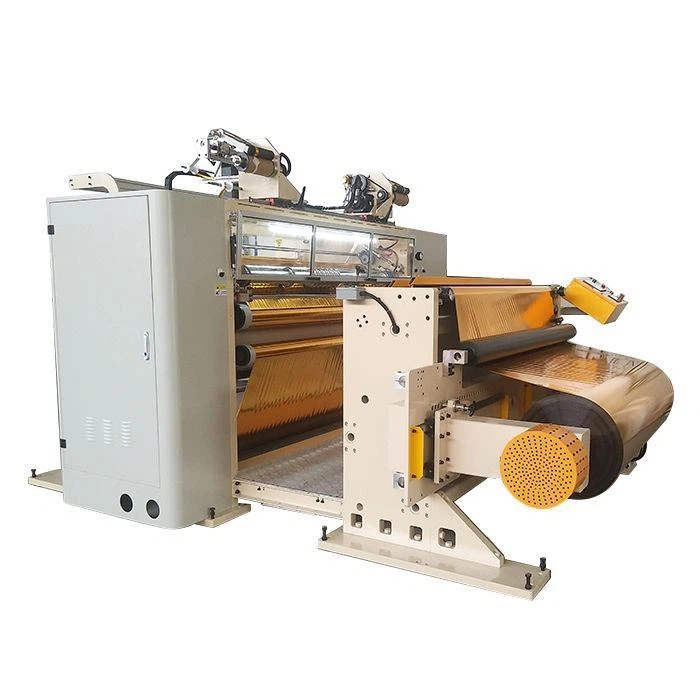

Hot Foil Slitter Rewinder
Hansoar is the best Chinese manufacturer for hot foil slitter rewinder.
We produce different hot stamping foil slitters cover all the jumbo roll ranges on the market from 640mm up to 2000mm width.
Product Detail
Hansoar is the best Chinese manufacturer for hot foil slitter rewinder.
We produce different hot stamping foil slitters cover all the jumbo roll ranges on the market from 640mm up to 2000mm width.

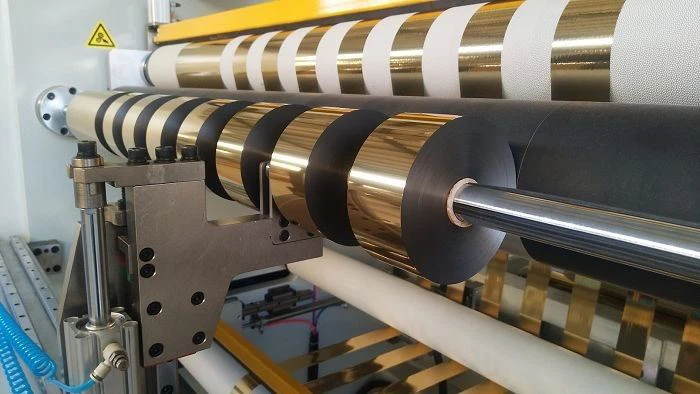

Our main products have the ability slit rewind hot stamping foil on 1”,3” and 6” cores with customized dust-free shear blade. The finished rolls length is up to 15,000 meter length.
Most important, the rolls produced are perfect in shape and tension. No wrinkle, no dust.
Hansoar hot foil slitter rewinder has been sold to world top hot stamping foil manufacturers and converters, including those from Germany, UK, Italy, Spain, Holland, Poland, Russia, USA, India, China etc..
Technical Data
Main Model | HS1300; HS1600 |
Hot Foil Width | 500-1600mm |
Jumbo Diameter | 800mm |
Finished Diameter | 600mm (3 inch core); 250mm (1 inch core) |
Knife | Circular Knife + Razor Blade |
Minimum Cut Width | 25mm |
Rewind Shaft | 1 Inch Air Shafts, 3 Inch Differential Shafts, Optional 6 Inch Shaft |
Slitting Speed | 700m/min (3" & 6" cores); 350m/min (1" core) |
Standard Function:
- 3" & 6" shaftless unwinding
- Hot foil joint table
- Ultrasonic edge guider
- Laser core positioning
- Finished roll unloading tree
- Closed loop tension control with load cells
- Contact roller system with automatic pressure control
-Servo Motorized trim winders
Optional:
- Automatic laser core positioning
- Automatic finished roll labeling and sealing
- Automatic labeling and seal for finished rolls
- Pneumatic knives
