Basic Specification

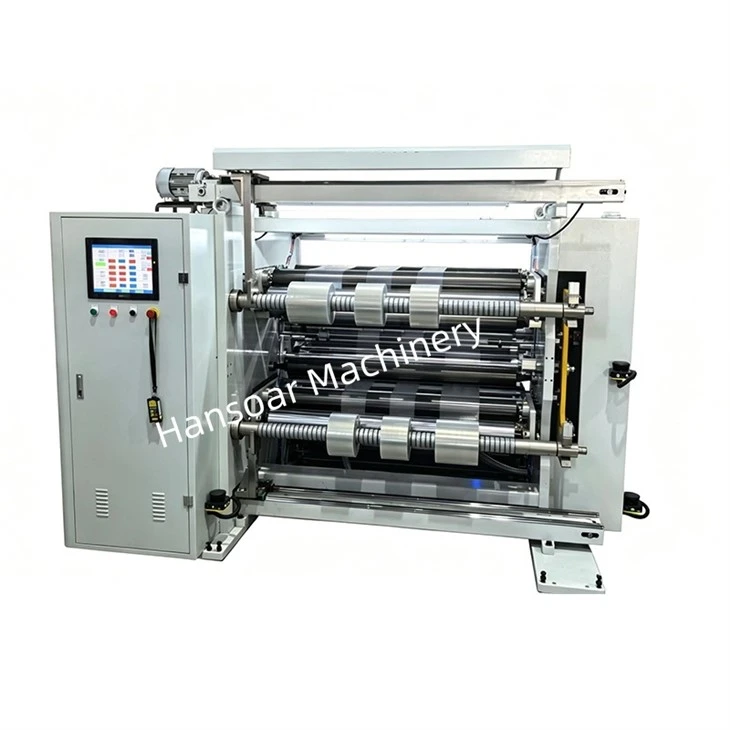

HS1600 Pharmaceutical Aluminum Foil Slitter
|
Model |
HS1600S Pharmaceutical Aluminum Foil Slitter |
|
Material Width |
500mm-1600mm |
|
Cutting Material |
aluminum foil, Self Adhesive Label, Paper, PET, PVC,PVDC film etc. |
|
Unwind Diameter |
1000mm |
|
Unwind Type |
Shaftless unwinding, 3 Inch and 6 Inch core |
|
Slitting Unit |
Circular knife + Razor Blade |
|
Minimum Rewind Width |
25mm |
|
Maximum Rewind Diameter |
800mm |
|
Rewind Shaft |
3 Inch Differential Shafts; 6 Inch Air Shafts |
|
Maximum Slitting Speed |
500M/Min |
|
Power |
380V, 3PH, 50Hz |
|
Air |
0.6Mp |
Products Video
HS1600 Pharmaceutical Aluminum Foil Slitter
Products Description
HS1600S Pharmaceutical Aluminum Foil Slitter is specialized in slitting rewinding various aluminium foils,foil laminates. The machine uses full Siemens servo system with Siemens HMI, with closed looptension control system, stable, precise. It uses separate unwinder layout, handling heavy jumbo roll up to 1.5 Tons. There are many automatic functions on this machine, like fully automatic circular knife positioning system, automatic laser core positioning system, automatic finished rolls pushers, automatic jumbo roll positioning, automatic finished rolls unloading tree etc,.all hese make the work easier for the operators.
Products Features
HS1600S Pharmaceutical Aluminum Foil Slitter
1. HS1600S Pharmaceutical Aluminum Foil Slitter adopts simple and elegant European-style outlook, the machine eliminates nearly all physical buttons. All controls are centralized on a 15-inch touch panel, delivering easy operation and sleek visuals.
2. This aluminum foil slitting machine complies with European technical standards and precision craftsmanship, the machine achieves superior machining and assembly accuracy. It runs smoothly with low failure rates during long-hour continuous production, achieving consistent and reliable overall performance over time.
3. HS1600S Pharmaceutical Aluminum Foil Slitter is fitted with most advanced closed-loop tension control system, real-time tension detection and automatic adjustment are realized. Stable tension is maintained during high-speed running and start-stop to avoid material stretching, wrinkling and breakage, delivering high slitting precision and better yield.
4. HS1600S Pharmaceutical Aluminum Foil Slitter equipped with follow-up pressure roller system (contact roller systerm), it automatically adjusts pressure according to roll diameter to exhaust inter-layer air, realizing tight winding with flat roll ends without bubbles or ribbing.
Accessory Details
|
1. PLC |
Mitsubishi |
1set |
|
2. Drive Motor |
ABB |
1set |
|
3. Drive Motor Converter |
YASKAWA |
1set |
|
4. Rewind Motor |
ABB |
2sets |
|
5. Rewind Motor Converter |
YASKAWA |
2sets |
|
6. Unwind Air Brake |
ABB |
1set |
|
7. Edge Guider |
Pausource |
1set |
|
8. Unwinder and Rewinder Tension Load Cell |
Kortis |
3sets |
|
9. Meter Counter |
Autonics |
1set |
|
10. Diameter Sensor |
P+F |
1set |
|
11. Main Touch Screen |
15 Inch Weinview |
1set |
|
12. Unwinder Touch Screen |
7 Inch Weinview |
1set |
|
13. Air Component |
Airtac |
/ |
|
14. High Precision Bearing |
NSK |
/ |
|
15. Automatic Circular Knife + Razor Blade |
/ |
each 10 sets |
|
16. Servo Motorized Laser Core Position unit |
/ |
10 sets |
Products Guarantee
One year guarantee for machine key parts, like plc, motor, converter, driver, touch screen, etc electrical parts. We will ship freely the new ones for replacement if any of them broken during guarantee time.
Our engineer is available for overseas service if customer pay air tickets,hotel and 120usd/day/person subsidy.
